Description

Simply feed the pre-die-cut corrugated paperboard into the machine, and it will spray hot melt adhesive, fold the paper, and automatically form the lid and base of the box.

The boxes produced by this machine are suitable for packaging products such as food, fruits, clothing, socks, gifts, and other items that require lid and base boxes.

Technology Specifications

Model	FBN-4030
Power supply	380V/50Hz
Total Power	10kw
Speed	1200-1500pcs/hour
Capacity of Hot Melt	4-6L
Paper Cardboard Thickness	0.35-2mm
Noise Level	≤80dB
Air Supply	0.6mpa
Air consumption	120-160L/min
Max.Stacking Height of Paper cardboard Feeding	700mm
Max.Weight of Paper cardboard Feeding	100kg
Machine Weight	1500kg
Machine Size (L×W×H)	3800×1485×1925mm

Unfold paper dimension (A=Width; B=Length)
A		B
Min.Width	270mm	Min.Length	210mm
Max.Width	700mm	Max.Length	600mm

Folded box dimension
L		W		H		K (flange width)
Min.Length	150mm	Min.Width	80mm	Min.Height	25mm	Min.Width	1mm
Max.Length	400mm	Max.Width	300mm	Max.Height	60mm	Max.Width	15mm

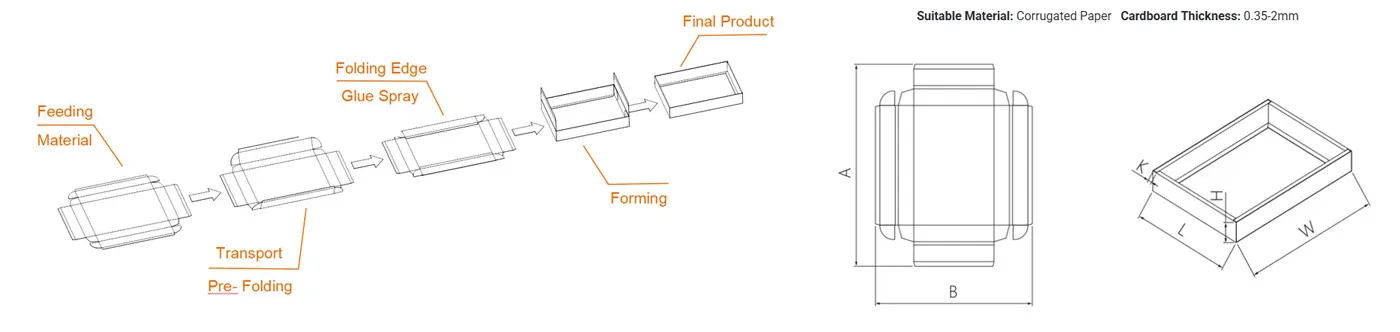

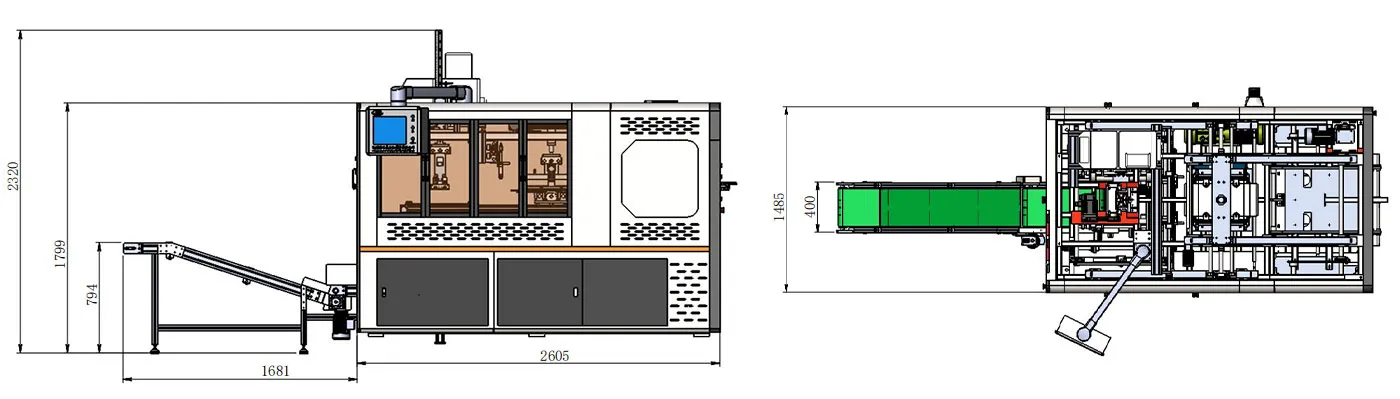

Layout Drawing

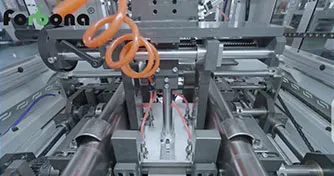

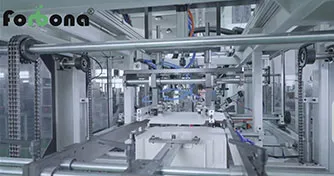

Machine Details

Material

- Corrugated paper cardboard

- White cardboard

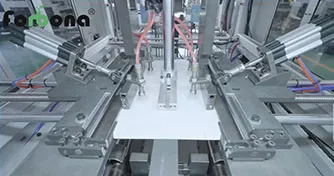

Pre - Folding

Through change mould to produce different shape and size of trays.

Hot Melt Spray System

Brand：VALCO MELTON (USA)

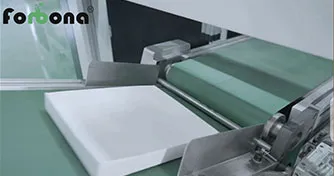

Forming Mould

Through change mould to produce different shape and size of lids and base boxes.

Final Product

Length：150-400mm

Width：80-300mm

Heigh：25-60mm

Flange Width: 1-15mm

Configuration List

Name	Brand
Motion Controller		China
Touch Screen		China
Servo motor (sucking)		China
Servo motor driver (forming)		China
Servo motor driver (forming)		China
Servo motor (sending)		China
Servo motor driver (sending)		China
Vacuum pump		China
Photoelectric sensor		Germany
Power Switch		Japan
Proximity Switch		Korea
Relay		France
Circuit Breaker		France
Linear guide rail		Taiwan - China
Filter		Taiwan - China
Solenoid		Taiwan - China
Cylinder		Taiwan - China
Vacuum valve		China
Hot melt machine		USA

Optional configuration

Glass Cover（Protection）

Protection

Hot melt glue machine

Carton Forming

Automatic cold glue sprayer

Carton Forming

Plasma system

Remove PE coating

Get A Touch

Tailored Design Matching

Production Line Upgrade

Full Expert Support

Length: 210-600mm	Width: 270-700mm
Max.Stacking Height: 700mm	Thickness: 0.35-2mm
