| Length: 350mm | Width: 550mm |

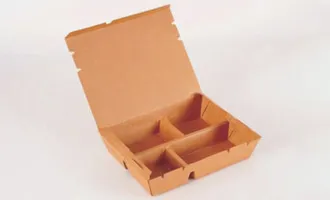

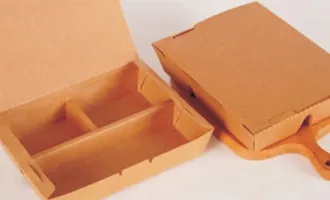

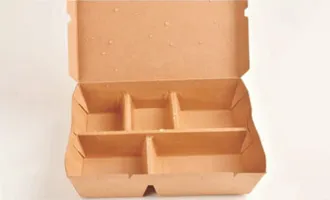

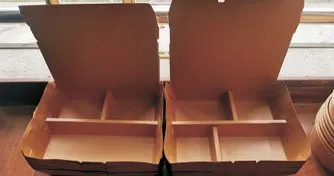

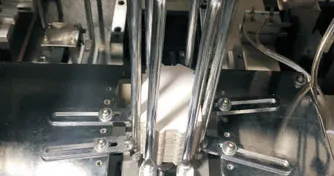

The FBN-DG is designed for producing 3-, 4-, 5-, and multi-compartment paper lunch boxes, compatible with PE-coated paper and a production speed of 20-30 boxes/minute. Its compact structure and simple operation meet the batch production needs of eco-friendly lunch boxes in the food service industry.
| Model | FBN-DG |
| Production Speed | 20-30pcs/min (The actual size is subject to the product size) |
| Power Requirements | 380V/50Hz |
| Maximun Size | 550*350mm |
| Max Paper Convey Width | 550mm |
| Suitable Material | 200-600g/m² PE Coated paper |
| Total Power | 6kw |
| Total Weight | 1.5T |
| Overall Dimension | 3200*1500*2600mm |
| Working Air Source | Air pressure 0.8Mpa (Need to buy compressor) |
