| Length: 350mm | Width: 350mm |

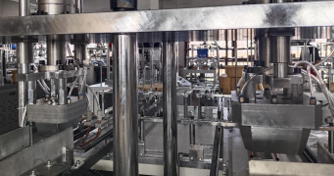

1. A mechanical transmission, speed, energy-saving, stable and simple operation, microcomputer detection and domestic advanced technology products.
2. A full automatic intelligent medium speed cake cup machine is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.

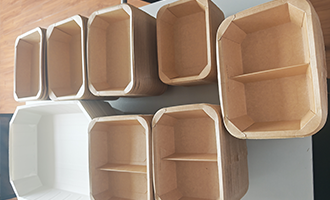

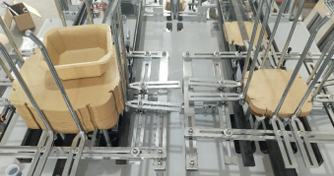

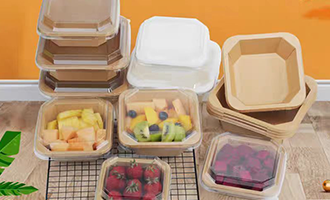

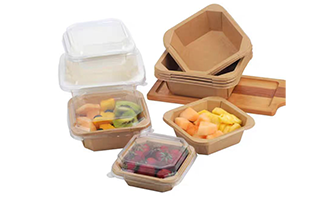

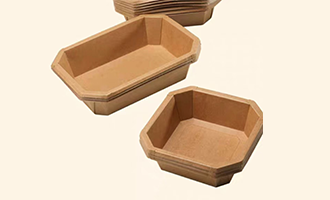

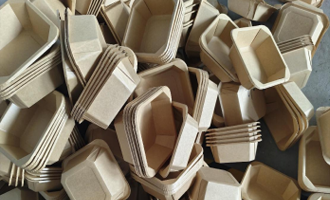

3. For the production of single-cell disposable paper boxes, paper boxes, cupcakes, food packaging boxes and B automatic intelligent medium speed cake cup machine through the automatic feed paper, heating (comes with hot air generating device), hot press molding (adhesive box four corners), automatic points collected, microcomputer control of continuous processes.
4. The fastest working speed is 50 times per minute. It has the monitor computer system .If the fault the machine will stop and alarming
| Type | FBN-T1 |
| Production capacity | 20-30times/min(The actual output is based on the product size.) |
| Maximum size: | 350 x350mm （190*230*60MMMaximum Carton Size） |
| Suitable Material: | 250-350g/㎡ (PE Coated paper |
| Total Power: | 6KW |
| Total Weight: | 1.0T |
| Overall Dimension: | 2200 x 800 x 2300 mm（1100*750*1300MMConveyor Collector） |
| Working Air Source: | Air pressure 0.5-0.6Mpa (Need to buy compressor) |
P.S. If different width, we can do it according to your requirement.
| Motor | Main motor | CHINA WVT |
| PLC | DELTA - TAIWAN CHINA | |
| Electrical equipment | TOUCH SCREEN | FLEXEM |
| TEMPERATURE CONTROL | AUTONICS(KOREA) | |
| Relay | CHINT - CHINA | |
| Contactor | CHINT - CHINA | |
| Frequency converter | DELTA - TAIWAN CHINA | |
| Photoelectric switch | AUTONICS(KOREA) | |
| Pneumatic | Main cylinder | AirTAC(TAIWAN) |
| Other pneumatic components | China famous brand | |
| other bearings | HBR |
P.S. If different width, we can do it according to your requirement.
