Description

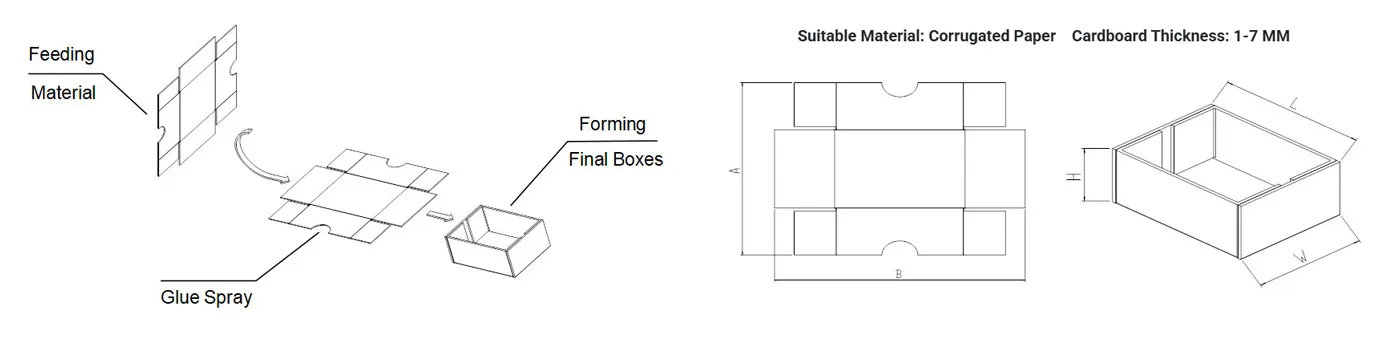

Simply feed the pre-die-cut corrugated paperboard into the machine, and it will spray hot melt adhesive, fold the paper, and automatically form the lid and base of the box.

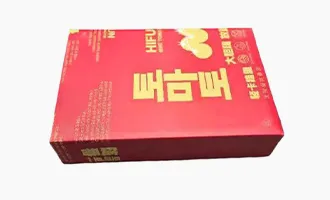

The boxes produced by this machine are suitable for packaging products such as fruits and other items that require big size of lid and base boxes.

Technology Specifications

Model	FBN-1510
Power supply	380V/50Hz
Total Power	8kw
Speed	1500-2100 pcs/hour
Capacity of Hot Melt	5L
Paper Cardboard Thickness	1-7mm
Noise Level	≤80dB
Air Supply	0.6mpa
Air consumption	120-160L/min
Max.Stacking Length of Paper cardboard Feeding	800mm
Max.Weight of Paper cardboard Feeding	150kg
Machine Weight	1500kg
Machine Size (L×W×H)	3500×1850×2800mm

Unfold paper dimension（A=Width；B=Length）
A		B
Min.Width	400mm	Min.Length	400mm
Max.Width	1420mm	Max.Length	1000mm

Folded box dimension
L		W		H
Min.Length	300mm	Min.Width	300mm	Min.Height	30mm
Max.Length	1200mm	Max.Width	800mm	Max.Height	200mm

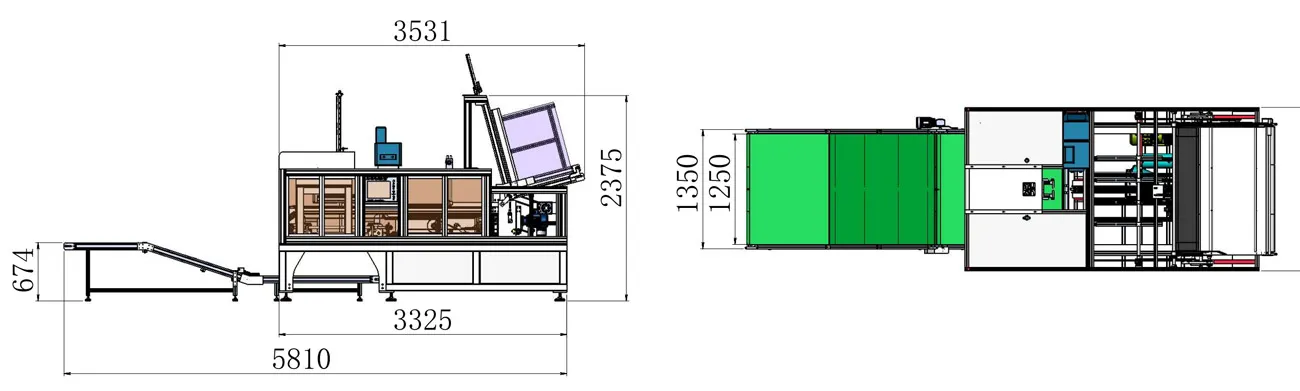

Layout Drawing

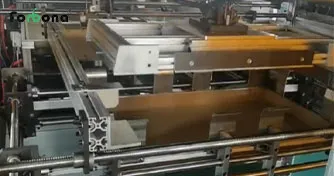

Machine Details

Material

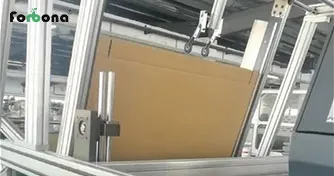

- Corrugated paper cardboard

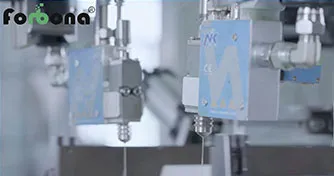

Hot Melt Spray System

Brand：VALCO MELTON (USA)

Forming Mould

Through change mould to produce different shape and size of lids and base boxes.

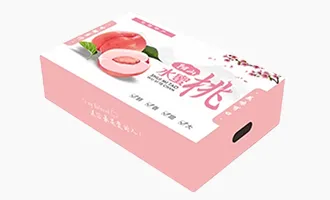

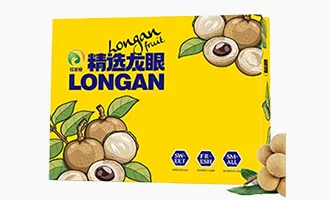

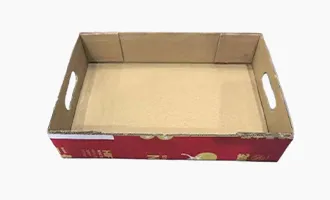

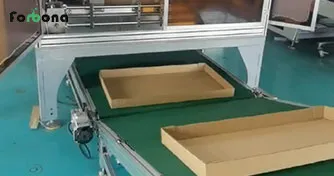

Final Product

Length：240-580mm

Width：240- 480mm

Heigh：30- 160mm

Configuration List

Name	Brand		Remark
Motion Controller		China
Touch Screen		China
Servo motor (forming)		China	1.8Kw
Servo motor driver (forming)		China	1.8Kw
Servo motor (sending)		China	0.75Kw
Servo motor driver (sending)		China	0.75Kw
Main motor		China	0.2Kw\1:5
Vacuum pump		China
Sensor		Japan
Power Switch		Japan
Proximity Switch		Korea
Relay		France
Circuit Breaker		France
Solid State Switch		Taiwan - China
Linear guide rail		Taiwan - China
Filter		Taiwan - China
Solenoid		Taiwan - China
Cylinder		Taiwan - China
Vacuum valve		China
Hot melt machine		USA

Get A Touch

Tailored Design Matching

Production Line Upgrade

Full Expert Support

Length: 400-1000mm	Width: 400-1420mm
Max.Stacking Height: 800mm	Thickness: 1- 7 mm
