FBN-C
Fully Automatic Hexagonal Paper Box Machine
Product Introduction :
The FBN-C specializes in producing hexagonal and other irregular-shaped boxes, with a production speed of 30-35 boxes/minute and support for 200-400g/m² PE-coated paper.
Production Capacity :
25-50 cycles per minute
Paper Unfold Size :
Length: 350mm Width: 500mm
Certificate :
Contact Now
Video

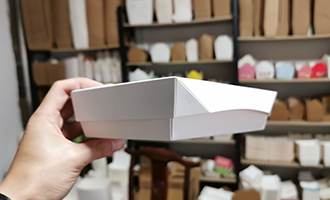

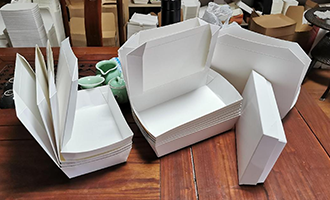

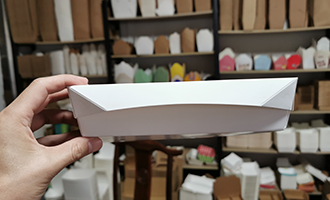

Application:
Description

1.This machine is a fully automatic paper molding equipment, boasts such advantages as high speed, stable operation and user-friendly operation. Equipped with mechanical transmission, microcomputer detection and a built-in hot air generator, it is applicable to single PE coated paper and stands as an advanced scientific and technological product in China.
2. The fully automatic paper lunch box machine, through continuous processes such as automatic paper feeding, heating (with a built-in hot air generator), hot pressing and forming (bonding the four corners of the lunch box), automatic counting and collection, and microcomputer control, is used to produce single-compartment disposable paper lunch boxes, paper rice boxes, cake paper cups, food packaging boxes, etc.
3.The maximum operating speed currently stands at 35 cycles per minute. It is equipped with automated monitoring systems for feeding, paper delivery, forming and stacking processes. In the event of a malfunction, the machine will stop operation automatically and trigger an alarm.



Technology Specifications
Model FBN-C
Production capacity 25-50 cycles per minute
Suitable material 200-400g/m2 PE Coated paper
Max.Paper unfold size 500*350mm
Total power 10KW
Weight 1.3T
Dimension(Including packaging) 2200(L) * 1450(W) * 2300(H) mm
Working air source Air pressure 0.5-0.6Mpa (Need to buy compressor)
Power source 380V/ 50Hz/ 3phase
FOB Price 12,800 USD (Includ one set mold)
Optional Extra mold (According to product size) 150 USD /Set
Machine Details

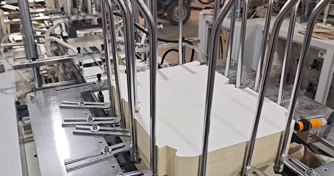

Paper feeding

Sucked down the paper material by suction cup.

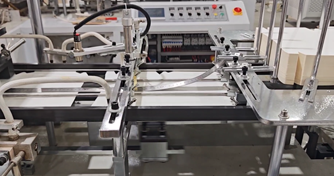

Paper transporting

Gear motor drives the swing rod and arm feed the paper into the forming section.

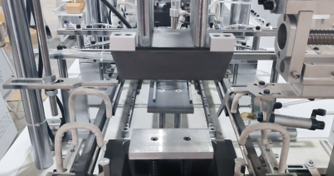

Paper box forming

Paper box is formed by extrusion through two molds, which sequentially shape the upper and lower parts of the paper box.

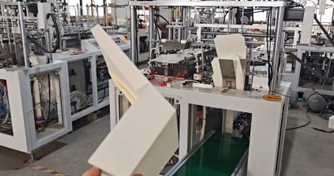

Finished product

The transfer system driven by servo motor can takes out and stacks the finished product, and then they are outputted from the conveyor belt below.

Configuration List
Model FBN-C
Motor Main motor  WVY - CHINA
Sever motor Made in Hangzhou China
Electrical equipment PLC DELTA - TAIWAN CHINA
Touch screen FLEXEM - CHINA
Temperature control AUTONICS - KOREA
Relay CHINT - CHINA
Contactor CHINT - CHINA
Frequency converter DELTA - TAIWAN CHINA
Photoelectric switch AUTONICS - KOREA
Pneumatic Solenoid valve AirTAC - TAIWAN CHINA
Other pneumatic components Well-known brand in China
Other bearings HBR  - CHINA
Optional configuration
Glass Cover(Protection)
Protection
Hot melt glue machine
Carton Forming
Automatic cold glue sprayer
Carton Forming
Plasma system
Remove PE coating
