Description

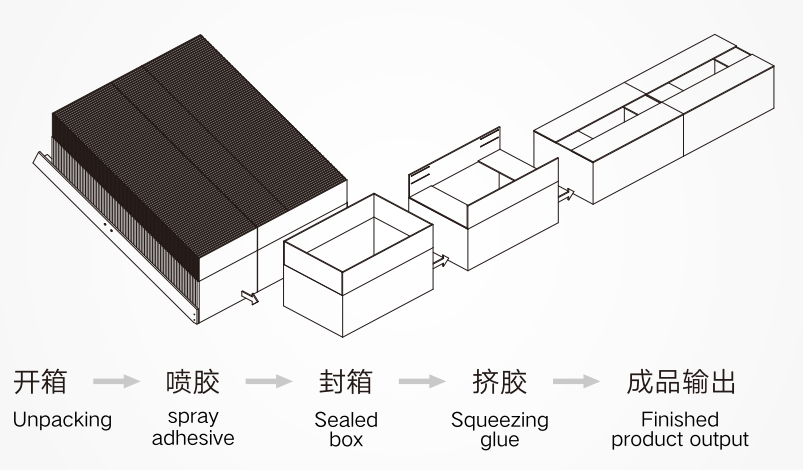

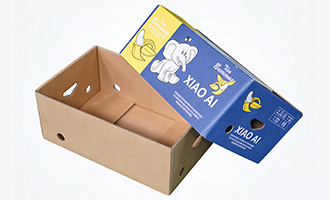

This machine is a specialized automatic box gluing machine for matching the top and bottom covers. Widely used in the automated production of transportation boxes for various fruits,vegetables, fresh produce, furniture, and hardware packaging.

Technology Specifications

Model	FBN-3052
Power supply	380V/50Hz
Total Power	6kw
Speed	1500-2100pcs/h(Depending on the structure of the box)
Thermosol Bucket Capacity	5L
Paper Cardboard Thickness	1.5-7 mm
Noise Level	≤80dB
Air source	120Litre/min
Max.Stacking Height of Paper cardboard Feeding	800mm
Stacked weight	90kg
Machine Weight	800kg
Machine Size (L×W×H)	2865×1925×1725mm

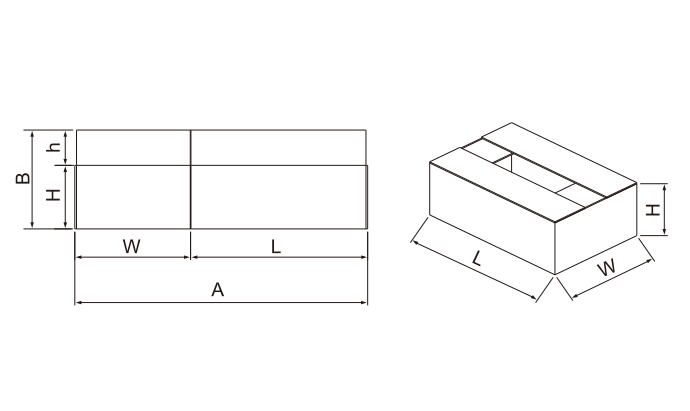

Unfold paper dimension（A=Width；B=Length）
A		B
Min.Width	320mm	Min.Length	280mm
Max.Width	800mm	Max.Length	800mm

Tray dimension
L		W		H
Min.Length	300mm	Min.Width	200mm	Min.Height	150mm
Max.Length	550mm	Max.Width	350mm	Max.Height	240mm
