Description

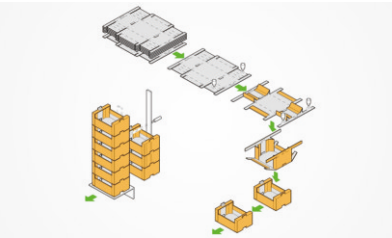

Only feeding the Corrugated paper cardboard (die cutted already) in machine,the machine will spray hot melt,folding paper,forming to tray and stacking them automatically.

Technology Specifications

Model	FBN-1210X
Thermosol bucket capacity (optional)	10L
Noise	≤90dB
Speed	1500-3300pcs（Depending on the structure and size of the box）
Cardboard stacking height	400mm
Stacked weight	80kg
Total power	10kw
Power	380V/50Hz
Air source	120Litre/min
Machine weight	2000kg
Dimensions (LxWxH)	3080x1805x2065mm

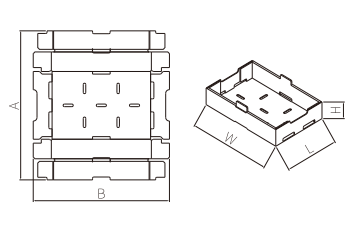

Unfold paper dimension（A=Width；B=Length）
A		B
Min.Width	450mm	Min.Length	450mm
Max.Width	1200mm	Max.Length	1000mm

Tray dimension
L		W		H
Min.Length	200mm	Min.Width	200mm	Min.Height	70mm
Max.Length	680mm	Max.Width	530mm	Max.Height	2200mm

Machine Details

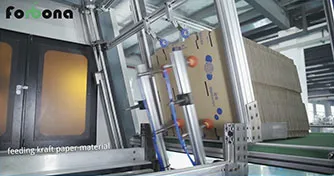

Material

Corrugated paper cardboard

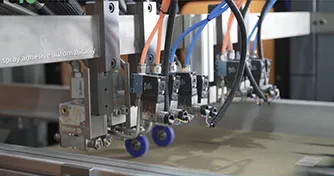

Hot Melt Spray System

Brand：VALCO MELTON (USA)

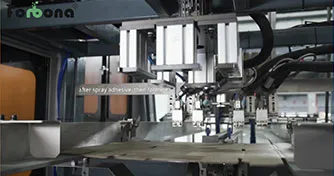

Forming Mould

Through change mould to produce different shape and size of trays.

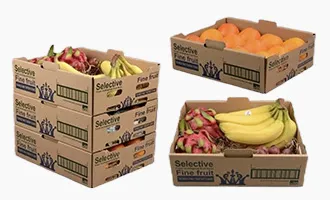

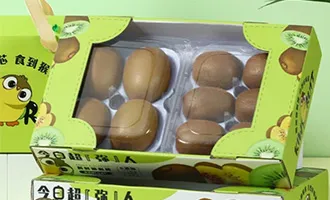

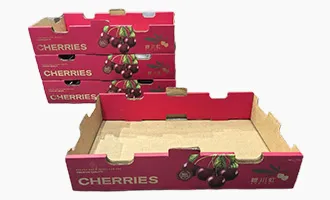

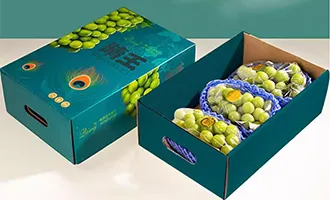

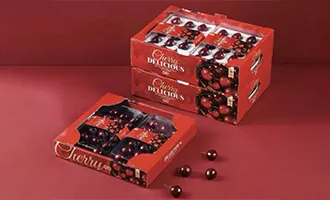

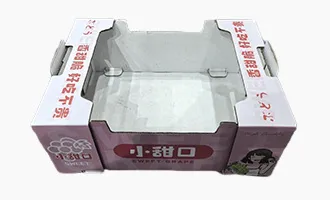

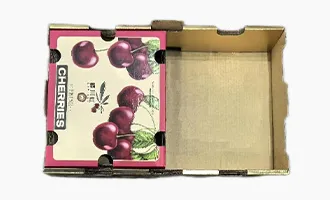

Final Product

Length：240-600mm

Width：240-450mm

Heigh：70-200mm

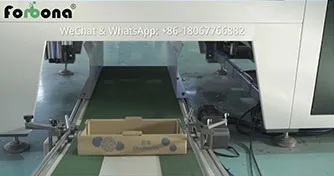

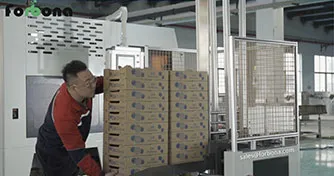

Stacking System/Unit

The final products will be stack here，easy to take products away.
