| Length: 480mm | Width: 480mm |

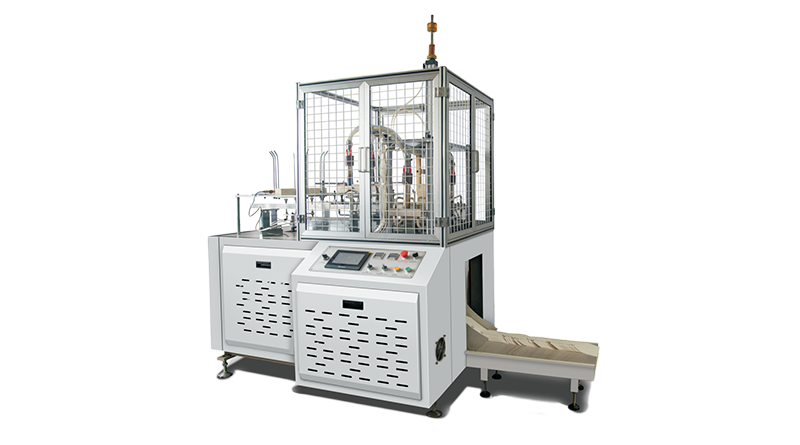

1.Mechanical transmission, speed, energy-saving, stable and simple operation, microcomputer detection and domestic advanced technology products.
2.Full automatic intelligent medium speed cake cup machine is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.

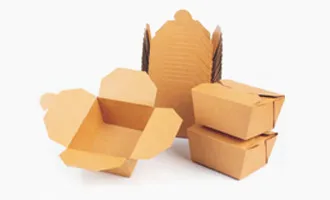

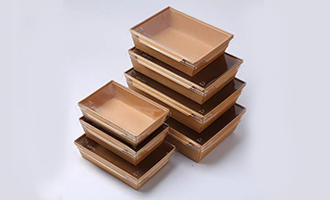

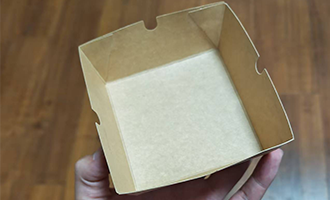

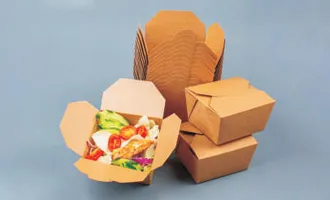

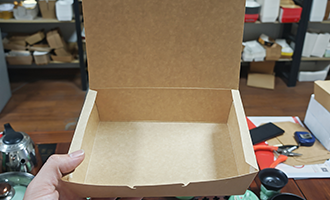

3.For the production of single-cell disposable paper boxes, paper boxes, cupcakes, food packaging boxes and B automatic intelligent medium speed cake cup machine through the automatic feed paper, heating (comes with hot air generating device), hot press molding (adhesive box four corners), automatic points collected, microcomputer control of continuous processes.
4.The fastest working speed is 55 times per minute. It has the monitor computer system .If the fault the machine will stop and alarming
| Model | FBN-A |
| Production capacity | 30-50 pcs/min |
| Suitable material | 200-400g/m2 PE Coated paper |
| Max.Paper unfold size | 600 * 550mm |
| Total power | 3KW |
| Weight | 1.2T |
| Dimension(Including packaging) | 2000(L) * 1200(W) * 2300(H) mm |
| Working air source | Air pressure 0.5-0.6Mpa (Need to buy compressor) |
| Power source | 380V/ 50Hz/ 3phase |
| FOB Price | 6,980 USD |
| Optional | another mold (According to product size) |
| Price | 500 USD |

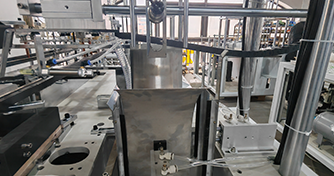

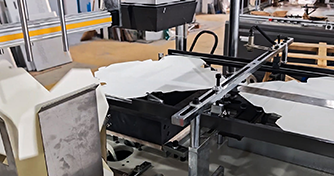

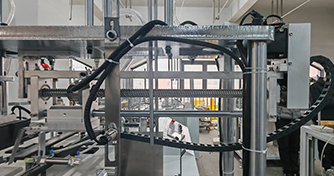

Sucked down the paper material by suction cup, and the gear motor drives the swing rod and arm to feed the paper into the forming section.

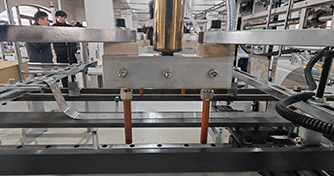

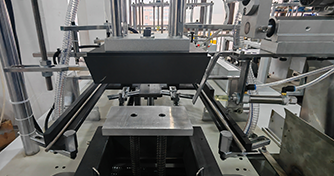

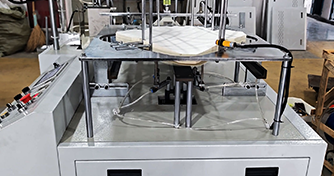

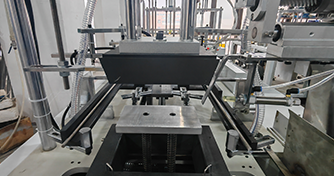

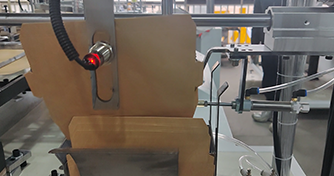

The paper is formed by compression between the upper and lower molds.

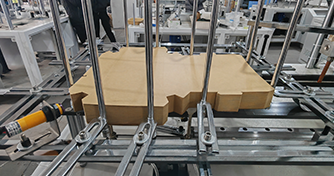

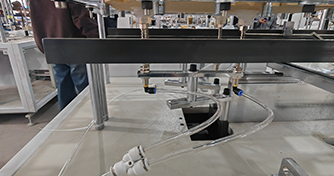

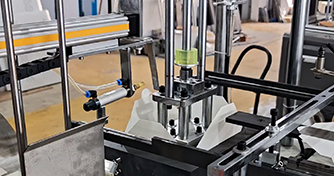

The formed cartons are transferred by a set of air cylinders and suction cups and stacked vertically. It will be replaced with a servo motor to take out cartons.

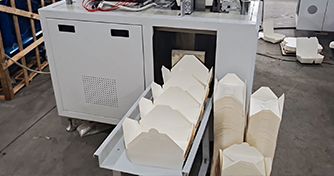

The finished products are stacked in groups and discharged from the bottom of the machine.
| Model | FBN-A | |
| Motor | Main Motor | WVT - CHINA |
| Electrical equipment | PLC | DELTA - TAIWAN CHINA |
| Touch screen | MCGS - CHINA | |
| Temperature control | AUTONICS - KOREA | |
| Relay | CHINT - CHINA | |
| Contactor | CHINT - CHINA | |
| Frequency converter | DELTA - TAIWAN CHINA | |
| Photoelectric switch | AUTONICS - KOREA | |
| Pneumatic | Main cylinder | AirTAC - TAIWAN CHINA |
| Other pneumatic components | China famous brand | |
| other bearings | HBR - CHINA | |
Key node quality report push
Equipment performance test report
Old equipment upgrading program
Lifetime technical support
Professional engineers 1 to 1 program design
