| Length: 100-650mm | Width: 100-510mm |
| Height: 15-200mm | Degree: 4°~ 40° |
The FBN-PC800Por is a high-speed 3D box forming machine with four servo controls, designed for producing various high-end paper boxes. It integrates optical, electrical, and pneumatic systems, featuring fully automated computer control, high production efficiency, and stable operation. It can produce square boxes, potato chip boxes, food boxes, and more, meeting premium packaging needs in industries such as food and daily necessities.
| Model | FBN-PC800Por |
|
Advantage |
Upgraded model 4 sets servo motor: |
|
Production Capacity |
80-300pcs/min |
|
Suitable Material |
Weight 200-600gsm: Card paper，PE coated paper, Kraft paper, Corrugated paper Max.Thickness: 1.5mm |
|
Paper unfold size |
Length 100-650mm Width100-510mm Height 15-200mm Degree: 4°-40° |
|
Total Power |
8 KW |
|
Weight |
2.2T |
|
Dimension（mm） |
3400 x 1450 x 1700 |
|
Power source |
3Phase 380V 50HZ (other voltage can be customized) |

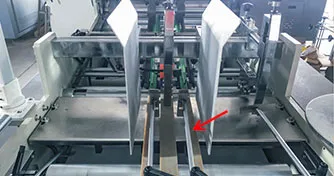

feeding paper by servo motor)
Suitable Material
Card paper,PE coated paper,
Kraft paper, Corrugated paper.
Weight: 200-600gsm: Max.Thickness: 1.5mm

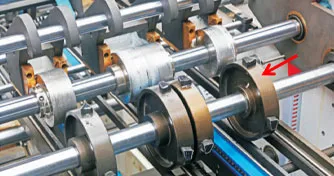

machine including rolling type
Optional
-Hot melt glue machine
-cold glue sprayer
By servo motor

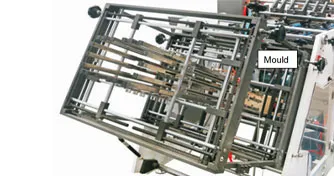

Extra Mould Price：220USD/SET
|
Model |
FBN-PC800Por |
|
Main Motor |
KongDe - China |
|
Servo Motor (paper feeding) |
|
|
Servo motor (paper transporting) |
|
|
Servo motor (paper downward ) |
|
|
Servo motor (carton forming) |
|
|
Gluing motor |
ZhanPeng - China |
|
Motion controller |
|
|
HMI |
|
|
PLC |
/ |
|
Frequency Converter |
/ |
|
Relay |
|
|
Low Voltage Apparatus |
|
|
Button |
|
|
Magnetic Switch/Senor |
|
|
Power Switch |
|
|
Pneumatic (cylinder) |
|
|
Paper feeding belt |
|
|
Convey Belt |
JIEBAO - China |
|
Main Bearing |
|
Key node quality report push
Equipment performance test report
Old equipment upgrading program
Lifetime technical support
Professional engineers 1 to 1 program design
- China
- France
- Japan
- Taiwan
- Taiwan
- Japan
- Japan
