Description

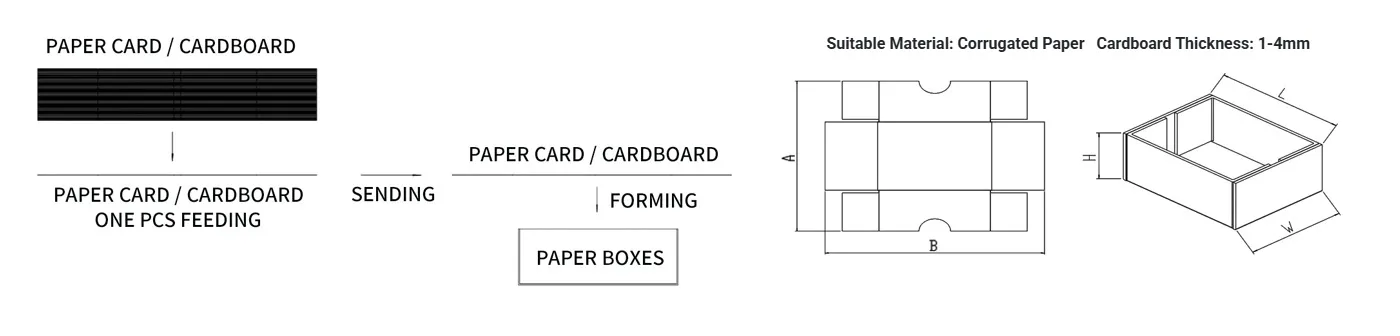

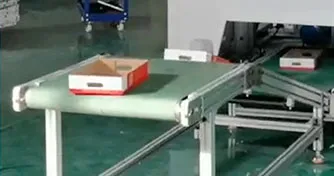

Place the prepared cardboard in the carton machine's paper feed slot. The machine will detect the cardboard, position it, and spray adhesive. This step is vital as it ensures the cardboard is firmly bonded. The machine will then fold the cardboard into the desired shape. The formed paper box is then pressed to ensure a firm bond and enhance stability. Finally, the machine will eject the finished paper boxes, ready for packaging or filling.

Technology Specifications

Model	FBN-700
Power supply	380V/50Hz
Total Power	4.5kw
Speed	2400-3300pcs/hour
Capacity of Hot Melt	5L
Paper Cardboard Thickness	1-4mm
Noise Level	≤80dB
Air Supply	0.6mpa
Air consumption	120-160L/min
Max.Stacking Height of Paper cardboard Feeding	500mm
Max.Weight of Paper cardboard Feeding	100kg
Machine Weight	1000kg

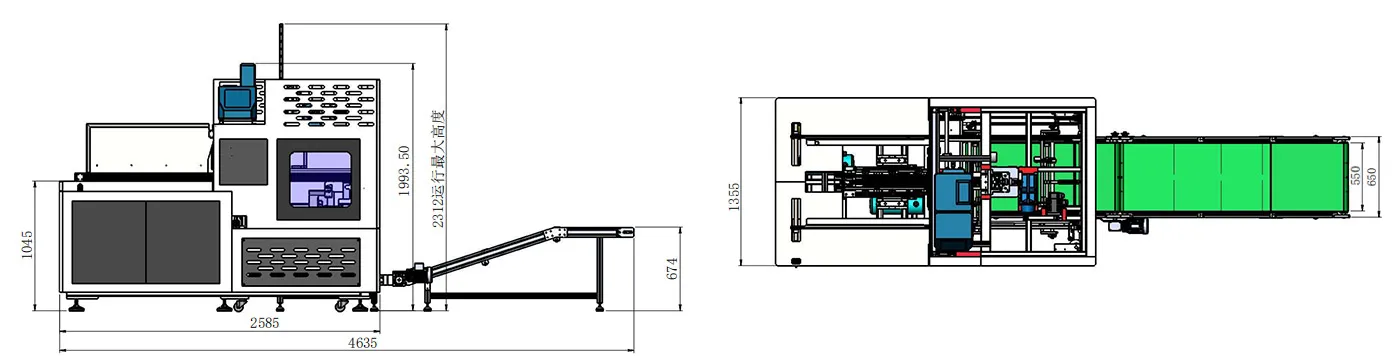

Machine Size (L×W×H)	2585×1355×1995mm

Unfold paper dimension（A=Width；B=Length）
A		B
Min.Width	300mm	Min.Length	280mm
Max.Width	800mm	Max.Length	800mm

Folded box dimension
L		W		H
Min.Length	240mm	Min.Width	240mm	Min.Height	30mm
Max.Length	580mm	Max.Width	480mm	Max.Height	160mm

Machine Details

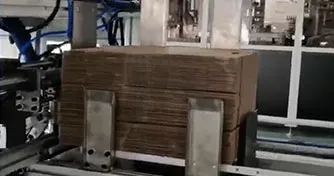

Material

Corrugated paper cardboard

Hot Melt Spray System

Brand：VALCO MELTON (USA)

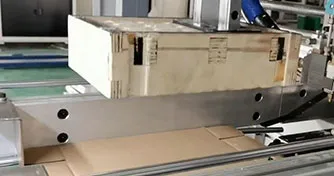

Forming Mould

Through change mould to produce different shape and size of lids and base boxes.

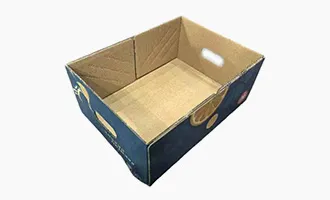

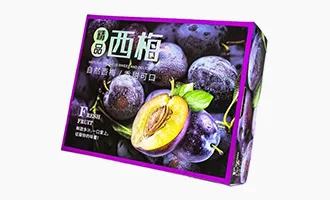

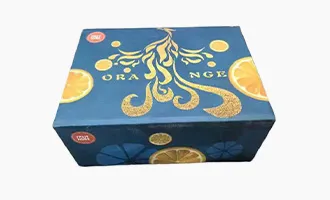

Final Product

Length：240-580mm

Width：240-480mm

Heigh：30-160mm

Configuration List

Name	Brand		Remark
Motion Controller		China
Touch Screen		China
Servo motor ( forming)		China	1.8Kw
Servo motor driver ( forming)		China	1.8Kw
Servo motor ( sending)		China	0.75Kw
Servo motor driver (sending)		China	0.75Kw
Main motor		China	0.2Kw\1:5
Vacuum pump		China
Sensor		Japan
Power Switch		Japan
Proximity Switch		Korea
Relay		France
Circuit Breaker		France
Solid State Switch		Taiwan - China
Linear guide rail		Taiwan - China
Filter		Taiwan - China
Solenoid		Taiwan - China
Cylinder		Taiwan - China
Vacuum valve		China
Hot melt machine		USA
