| Length: 125-400mm | Width: 110-400mm |
| Max.Stacking Height: 600mm | Thickness: 1-3 mm |

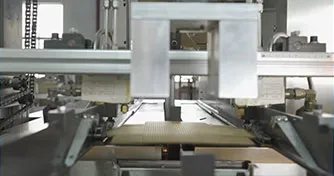

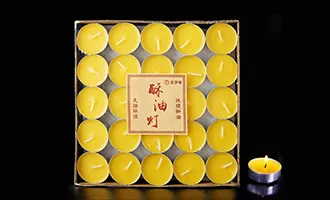

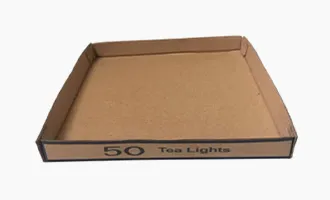

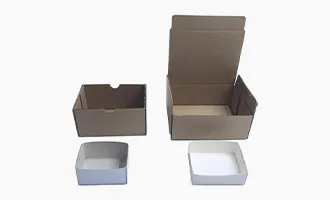

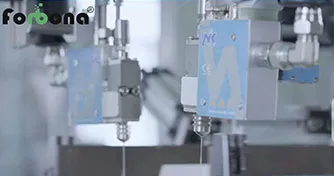

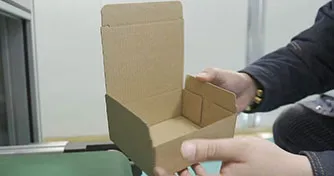

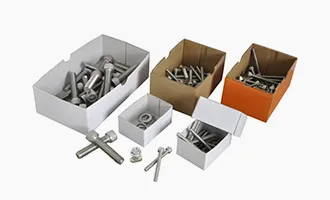

Simply feed pre-die-cut corrugated paperboard into the machine, and it will spray hot melt adhesive, fold the paper, and automatically assemble the lid and base of the box. The boxes produced by this machine are ideal for packaging products such as fruits and other items that require small lid and base boxes.
| Model | FBN-20 |
| Power supply | 380V/50Hz |
| Total Power | 4.5kw |
| Speed | 1800-3000pcs/hour |
| Capacity of Hot Melt | 5L |
| Paper Cardboard Thickness | 1-3mm |
| Noise Level | ≤80dB |
| Air Supply | 0.6mpa |
| Air consumption | 120-160L/min |
| Max.Stacking Length of Paper cardboard Feeding | 600mm |
| Max.Weight of Paper cardboard Feeding | 100kg |
| Machine Weight | 600kg |

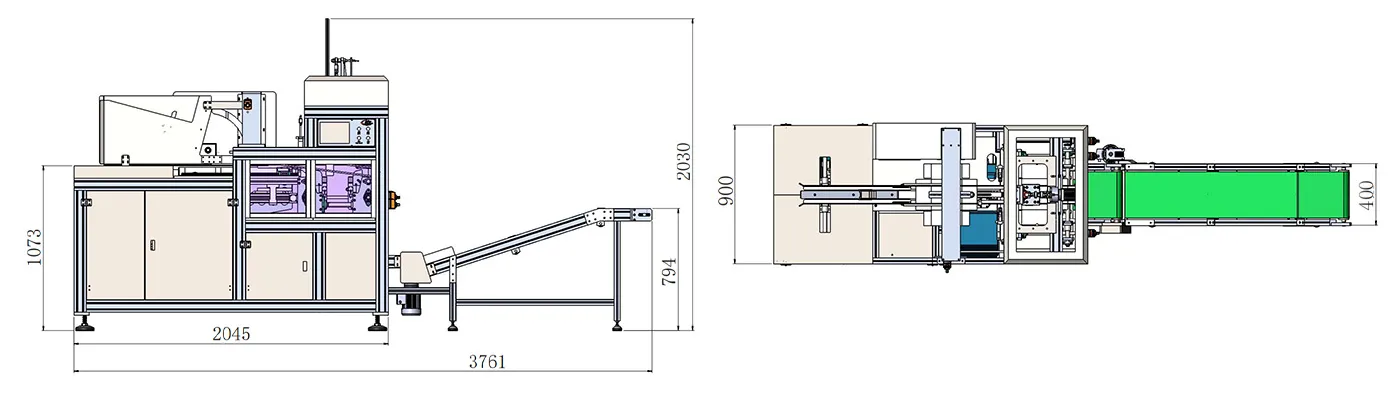

| Machine Size (L×W×H) | 2000×870×2030mm |
|
Unfold paper dimension（A=Width；B=Length） |
|||
|
A |
B |
||
|
Min.Width |
110mm |
Min.Length |
125mm |
|
Max.Width |
400mm |
Max.Length |
400mm |
|
Folded box dimension |
|||||
|
L |
W |
H |
|||
|
Min.Length |
65mm |
Min.Width |
50mm |
Min.Height |
30mm |
|
Max.Length |
200mm |
Max.Width |
200mm |
Max.Height |
100mm |
Length：65-200mm
Width：50-200mm
Heigh：30-100mm
| Name | Brand | Remark | |
|
PLC |
|
China |
|
|
Touch Screen |
|
China |
|
|
Servo motor ( forming) |
|
China |
|
|
Servo motor driver ( forming) |
|
China |
|
|
Main motor |
|
China |
|
|
Vacuum pump |
|
China |
|
|
Sensor |
|
Japan |
|
|
Proximity Switch |
|
Korea |
|
|
Relay |
|
France |
|
|
Circuit Breaker |
|
France |
|
|
Linear guide rail |
|
Taiwan - China |
|
|
Solenoid |
|
Taiwan - China |
|
|
Vacuum valve |
|
China |
|
|
Hot melt machine |
 |
USA |
|
